VIDEO PROJECTION ONTO AN ARBITRARY CURVED SURFACE
Saikat Bahdra, Eric Heinen, Matt RileyEE 371R - Image and Video Processing Final Project (Spring 2005) |
|
|
Projects a square image onto most curved surfaces without (much) distortion. |
|
Projector and Laptop |
Non-Uniform Projection Surface |
| 1.) A test pattern like the one below is projected onto the surface. A still camera is used to capture the projected image, which is then analyzed by the software to measure the distortion introduced by the surface. | |

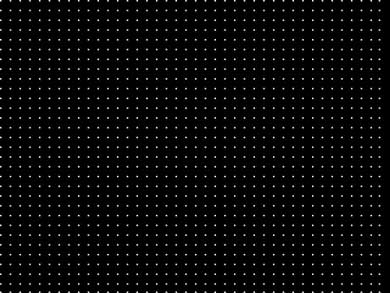

Structured Lighting Pattern |

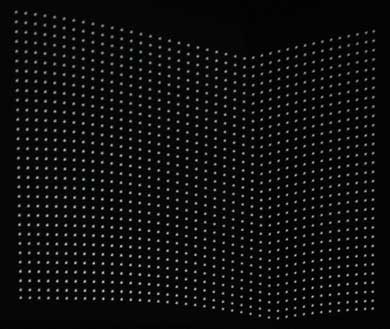

Structured Lighting Pattern Projected |
| 2.) The image to be projected is shown below as a source image and as it appears when projected without our software. | |
Source Image |
Source Image Projected (without software modification) |
| 3.) The software uses the analysis from (1) to distort the source image in such a way that it will appear undistorted when projected on to the curved surface. | |
Software-Modified Source Image |
Final Image Projection |
